Threaded Shank Drills, Frct
Threaded shank drill bits are type D adapter style. They are made from M42 8% cobalt and are manufactured to NAS 965 Type "D" specifications. They have 135ยบ heavy duty split point and surface treated for drilling hard, tough, high tensile strength materials. When drilling low tensile strength materials, the Type "D" cobalt drill will have a significantly greater tool life than the NAS 965 Type B high speed steel adapter drill, resulting in a much lower cost per hole.
If an item shows Call for Price, ask for price and availability, as it may have lead time or is a special order item.
If an item shows Call for Price, ask for price and availability, as it may have lead time or is a special order item.
Sort By:
Filters:
Size
Material
Finish
Flute Length
Overall Length
Point
Shank Type
Point Angle
Number of Flutes
Page {pageNumber} of {pagesNumber}
CF-TSD1/4L
- 1/4" Cobalt Long Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0400000
| Size: | 1/4"1/4" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 1-1/8"1-1/8" |
| Overall Length: | 2-1/8"2-1/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $5.9587 / EA

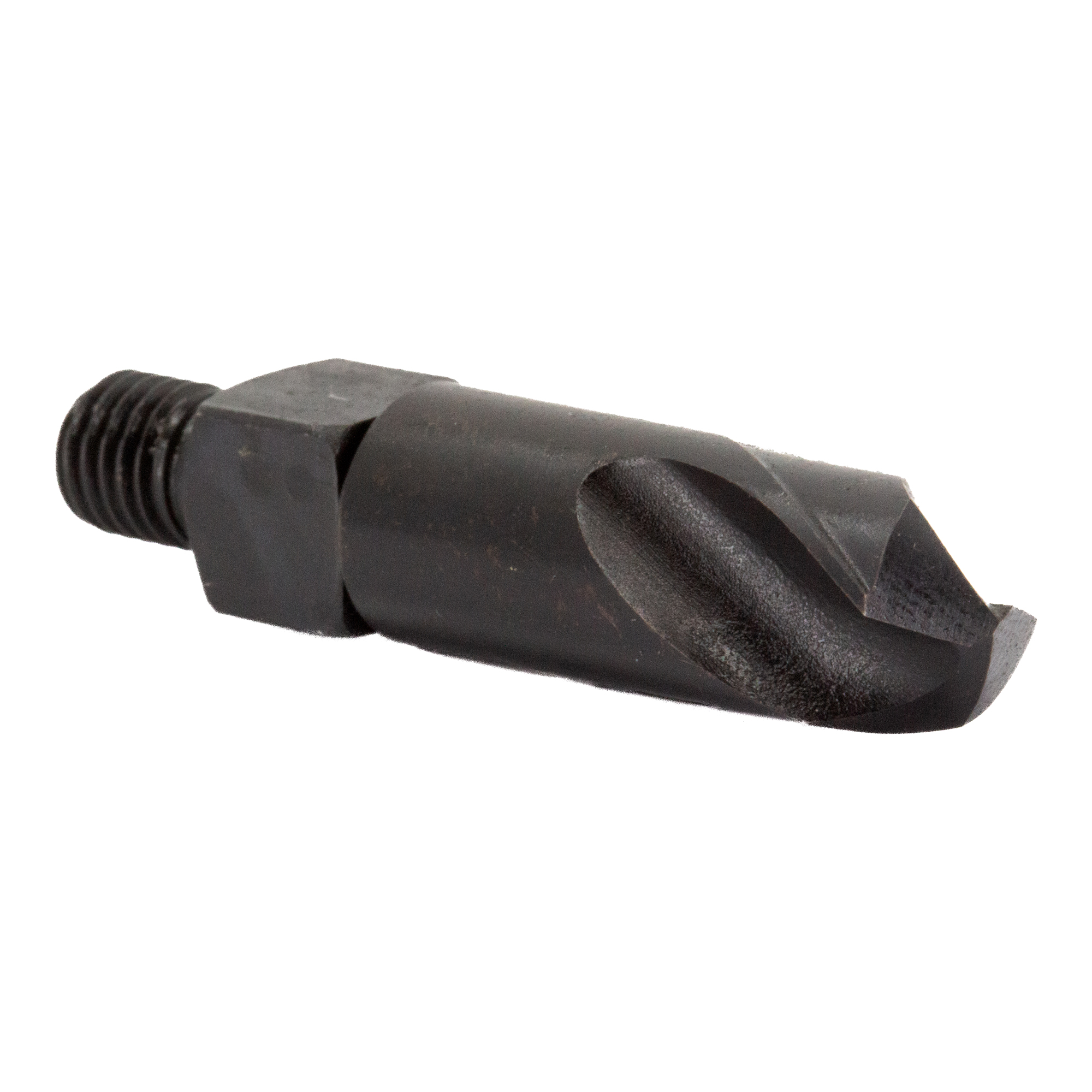

CF-TSD1/4S
- 1/4" Cobalt Short Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0400000
| Size: | 1/4"1/4" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 9/16"9/16" |
| Overall Length: | 1-1/4"1-1/4" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $6.0961 / EA
CF-TSD1/4ST
- 1/4" Cobalt Stubby Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0400000
| Size: | 1/4"1/4" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 5/16"5/16" |
| Overall Length: | 5/8"5/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $6.9718 / EA
CF-TSD1/8L
- 1/8" Cobalt Long Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0100000
| Size: | 1/8"1/8" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 1-1/8"1-1/8" |
| Overall Length: | 2-1/8"2-1/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $4.8940 / EA
CF-TSD1/8S
- 1/8" Cobalt Short Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0100000
| Size: | 1/8"1/8" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 9/16"9/16" |
| Overall Length: | 1"1" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $4.6880 / EA
CF-TSD1/8ST
- 1/8" Cobalt Stubby Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0100000
| Size: | 1/8"1/8" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 5/16"5/16" |
| Overall Length: | 1/2"1/2" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $5.0915 / EA
CF-TSD3/16L
- 3/16" Cobalt Long Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0200000
| Size: | 3/16"3/16" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 1-1/8"1-1/8" |
| Overall Length: | 2-1/8"2-1/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $5.4865 / EA
CF-TSD3/16S
- 3/16" Cobalt Short Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0200000
| Size: | 3/16"3/16" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 9/16"9/16" |
| Overall Length: | 1-1/4"1-1/4" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $5.2890 / EA
CF-TSD3/16ST
- 3/16" Cobalt Stubby Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0200000
| Size: | 3/16"3/16" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 5/16"5/16" |
| Overall Length: | 9/16"9/16" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $5.6925 / EA
CF-TSD3/8L
- 3/8" Cobalt Long Threaded Shank Drill Bit
- G
- 0
- Weight: 0.1100000
| Size: | 3/8"3/8" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 1-1/8"1-1/8" |
| Overall Length: | 2-1/8"2-1/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $12.5699 / EA
CF-TSD3/8S
- 3/8" Cobalt Short Threaded Shank Drill Bit
- G
- 0
- Weight: 0.1100000
| Size: | 3/8"3/8" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 9/16"9/16" |
| Overall Length: | 1-1/4"1-1/4" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $12.5699 / EA
CF-TSD3/8ST
- 3/8" Cobalt Stubby Threaded Shank Drill Bit
- G
- 0
- Weight: 0.1100000
| Size: | 3/8"3/8" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 5/16"5/16" |
| Overall Length: | 3/4"3/4" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $12.5699 / EA
CF-TSD5/16L
- 5/16" Cobalt Long Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0700000
| Size: | 5/16"5/16" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 1-1/8"1-1/8" |
| Overall Length: | 2-1/8"2-1/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $12.1835 / EA
CF-TSD5/16S
- 5/16" Cobalt Short Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0700000
| Size: | 5/16"5/16" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 9/16"9/16" |
| Overall Length: | 1-1/4"1-1/4" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $10.6638 / EA
CF-TSD5/16ST
- 5/16" Cobalt Stubby Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0700000
| Size: | 5/16"5/16" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 5/16"5/16" |
| Overall Length: | 5/8"5/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $11.3249 / EA
CF-TSD5/32L
- 5/32" Cobalt Long Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0100000
| Size: | 5/32"5/32" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 1-1/8"1-1/8" |
| Overall Length: | 2-1/8"2-1/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $4.9370 / EA
CF-TSD5/32S
- 5/32" Cobalt Short Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0100000
| Size: | 5/32"5/32" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 9/16"9/16" |
| Overall Length: | 1-1/4"1-1/4" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $4.7395 / EA
CF-TSD5/32ST
- 5/32" Cobalt Stubby Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0100000
| Size: | 5/32"5/32" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 5/16"5/16" |
| Overall Length: | 9/16"9/16" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $5.1344 / EA
CF-TSD7/32L
- 7/32" Cobalt Long Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0300000
| Size: | 7/32"7/32" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 1-1/8"1-1/8" |
| Overall Length: | 2-1/8"2-1/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $6.7486 / EA
CF-TSD7/32S
- 7/32" Cobalt Short Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0300000
| Size: | 7/32"7/32" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 9/16"9/16" |
| Overall Length: | 1-1/4"1-1/4" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $5.9759 / EA
CF-TSD7/32ST
- 7/32" Cobalt Stubby Threaded Shank Drill Bit
- G
- 0
- Weight: 0.0300000
| Size: | 7/32"7/32" |
| Material: | CobaltCobalt |
| Finish: | Black OxideBlack Oxide |
| Flute Length: | 5/16"5/16" |
| Overall Length: | 5/8"5/8" |
| Point: | Split PointSplit Point |
| Shank Type: | |
| Point Angle: | |
| Number of Flutes: | 22 |
- $6.3708 / EA
